Tables Graphs¶

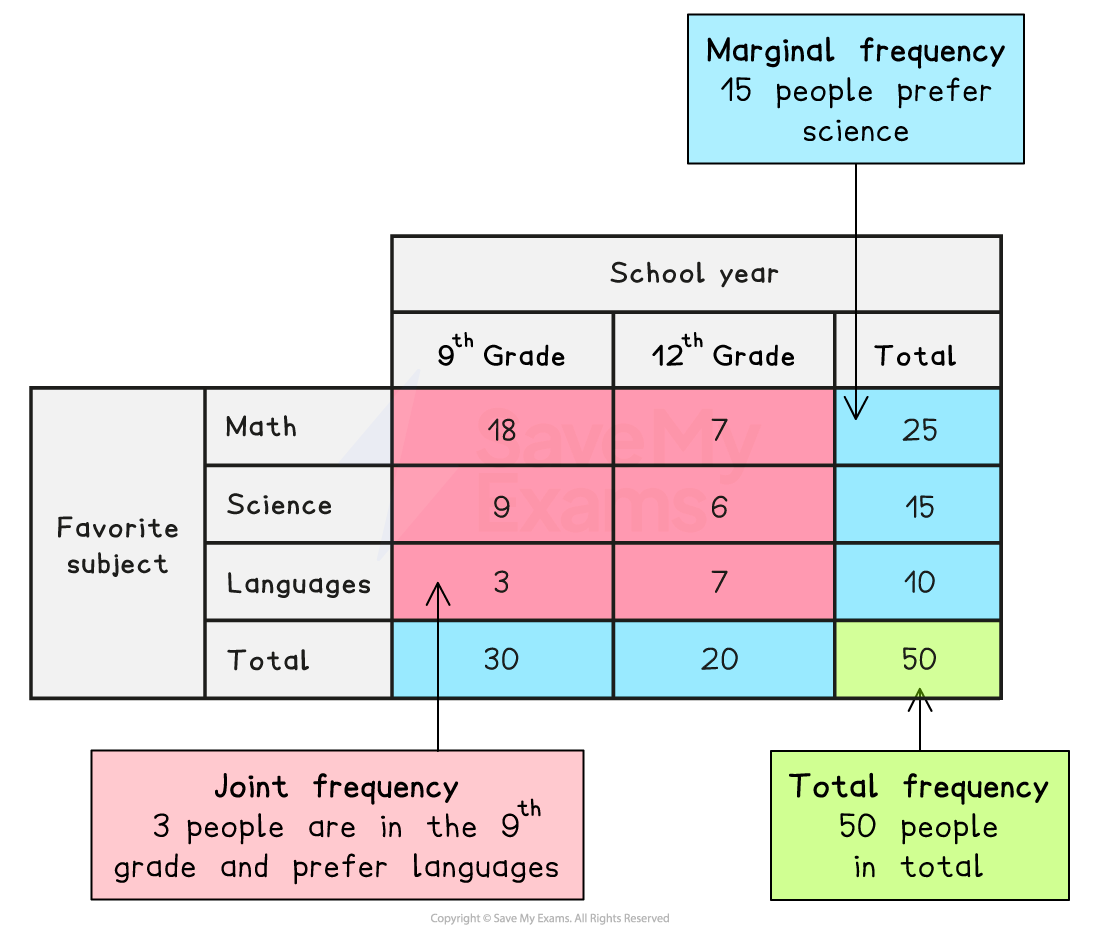

Two-Way Tables & Relative Frequencies¶

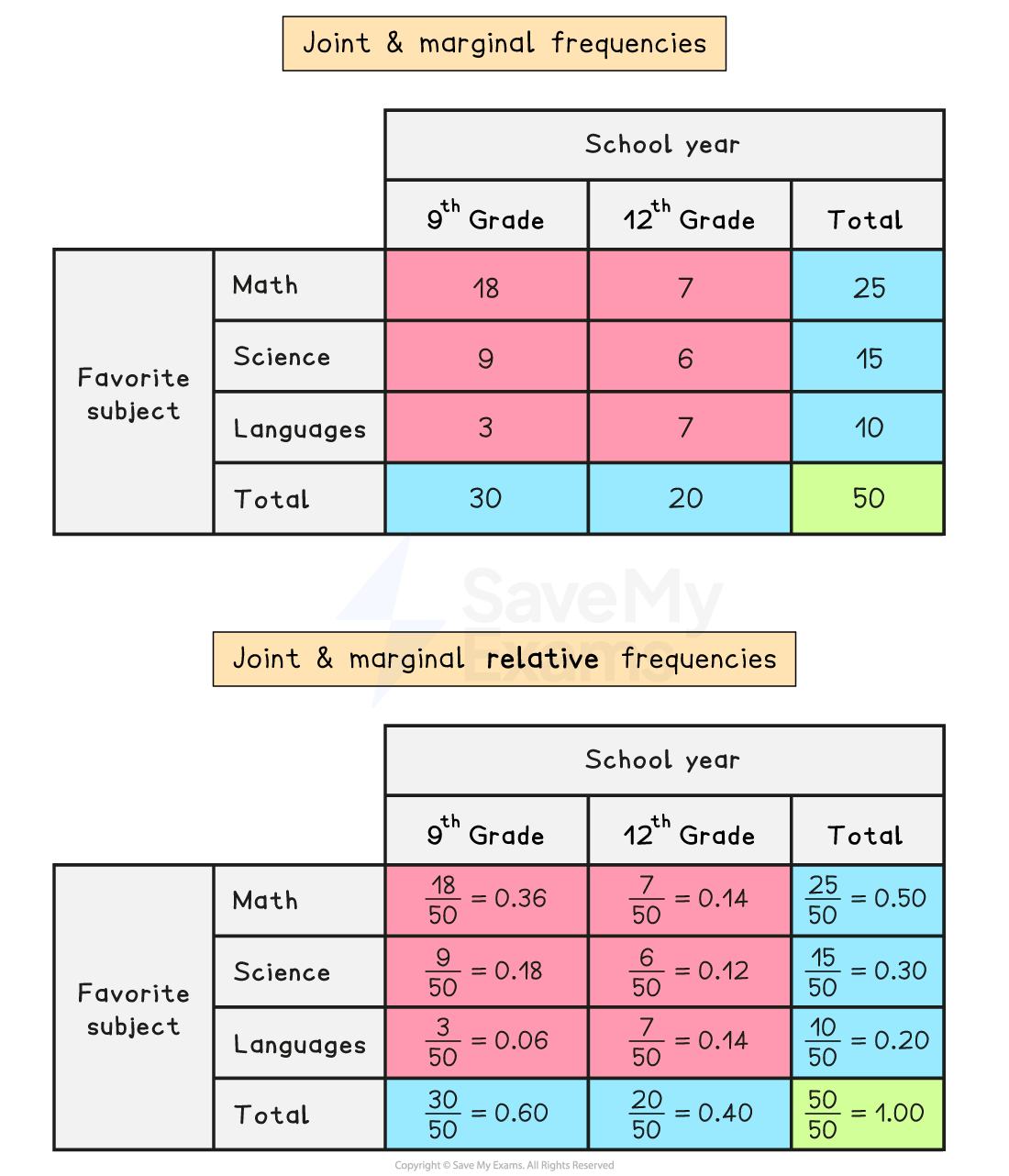

Relative Frequencies¶

• Joint relative frequencies: \(\frac{joint\ frequency}{total\ frequency}\)
• Marginal Relative Frequencies: \(\frac{marginal\ frequency}{total\ frequency}\)

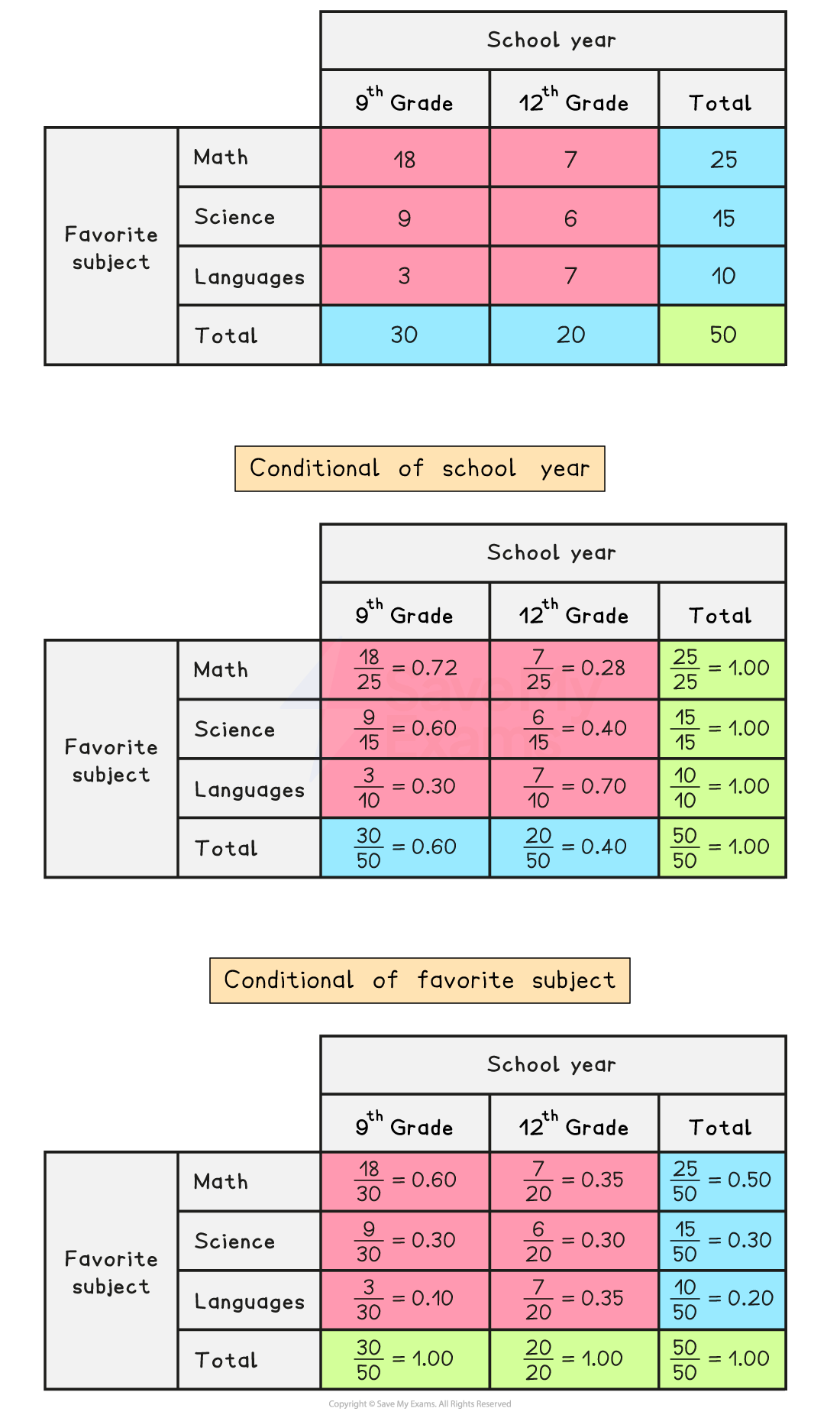

Conditional Relative Frequencies¶

Conditional Relative Frequencies =\(\dfrac{joint\ frequency}{marginal\ frequency}\)

Conditional of category X: the row/column of category sum up to 1

Bar Graphs & Mosaic Plots¶

Side-by-Side Bar Graphs¶

Segmented Bar Graphs¶

• Compare the conditional relative frequencies
• If using relative frequency for a segmented bar graph, frequencies cannot be compared

Mosaic Plots¶

- Widths are proportional to the marginal relative frequencies - Areas of the bars are proportional to the joint frequencies - Compare conditional relative frequencies - Compare marginal relative frequencies by checking widths of the bars
